Guide for integrating a SAML authenticator from UDS Enterprise 3.5 to validate IRONCHIP users, enabling access to UDS Enterprise services. Admin permissions required.
Creation of IRONCHIP SAML application
The first task will be performed in the IRONCHIP administration panel. We will need a user
with administration permissions.
Access the IRONCHIP administration panel and select "SAML apps".
We will have to register a new customized SAML application:
In the configuration wizard we indicate a name to identify the application and select the type of
integration we want to do, which will be of type "SAML":
Once this option is selected we can download the Metadata generated by IRONCHIP:
Once downloaded, leave this window open and move on to the next step
Creation of the SAML authenticator in UDS Enterprise
Access the UDS Enterprise administration and go to the "Authenticators" section, select "New" and choose "SAML Authenticator".
In the "Main" tab we will indicate a name for the authenticator (it cannot contain spaces), the
priority and a "Label".
In the "Certificates" tab we must indicate a valid certificate and its key. They must be in PEM
format:
If you do not have certificates, you can generate one with OpenSSL. To generate it, we will
use the following sentence (the UDS server has OpenSSL installed, this machine can be
used to generate the certificate):
openssl req -new -newkey rsa:2048 -days 3650 -x509 -nodes -keyoutserver.key -out server.crt
Once the certificate is generated, we must share the key with RSA, for this, we will use the
following command:
openssl rsa -in server.key -out server_rsa.key
Example of certificate generation:
Execute the command and fill in the necessary data to generate the certificate:
Now we convert the key to rsa:
Copy the contents of the certificate file and the rsa key to UDS:
The key will be copied in the "Private Key" section and the certificate in "Certificate":
In the next tab, "Metadata", we will complete the "IDP Metadata" section with the metadata
downloaded from IRONCHIP in previous steps (step 2 of the custom SAML application
registration). It is important to copy the complete content of the file. To do so, it is
recommended to open the file with a suitable application and never with a browser (it hides
parts of the code...):
The "Entity ID" section will be left empty, as it will be automatically filled in when the
authenticator is saved. The data will be generated based on the URL used in the connection
to the UDS Enterprise portal.
We save the authenticator (we will have to indicate any data in the "Attributes" tab to allow
us to save. In the following steps we will return to this section and the final configuration will
be applied) and when editing it again we will be able to obtain the "Entity ID" data
necessary to be able to continue configuring the SAML custom application in the IRONCHIP
console.
SAML application configuration in IRONCHIP
We return to the IRONCHIP configuration wizard to create a custom SAML application,
where it will ask us for the "Metadata URL" generated in the previous step once we have
saved and re-edited the authenticator in UDS Enterprise.
Once the URL has been entered, we will finish the wizard.
The next step will be to give our users access to the created application:
We will be able to add users individually or groups of users:
With these steps we will have created our application in IRONCHIP and we will be able to
continue with the following point.
SAML Attribute Definition in UDS Enterprise
Access the UDS Enterprise administration, select the SAML authenticator previously
created and edit it.
In the "Attributes" section we will indicate the correct attributes. They are defined and
visible in the IRONCHIP documentation and by default they are:
| Description | Friendly Name | SAML Name |
| User Name | uid | urn:oid:0.9.2342.19200300.100.1.1 |
| User Email | urn:oid:0.9.2342.19200300.100.1.3 | |
| User given Name | givenName | urn:oid:2.5.4.42 |
| User common Name | cn | urn:oid:2.5.4.3 |
| User Groups | eduPersonAffiliation | urn:oid:1.3.6.1.4.1.5923.1.1.1.1 |
NOTE: In UDS Enterprise it is possible to specify several attributes or use regular
expressions. For example, to specify new group membership attributes.
Once the attributes are correctly defined, we save and access the authenticator created in
UDS Enterprise.
Within the authenticator, access the "Groups" section to add the necessary groups.
The groups will have to be added manually, since the automatic search does not
apply with this type of authenticator:
We add all the necessary groups (in this example, we add the different departments to
which the users belong, since the IRONCHIP department membership attribute used is
"Groups"):
Access through the authenticator
To confirm that all the configuration is correct, we access the UDS Enterprise portal
through the newly created SAML authenticator:

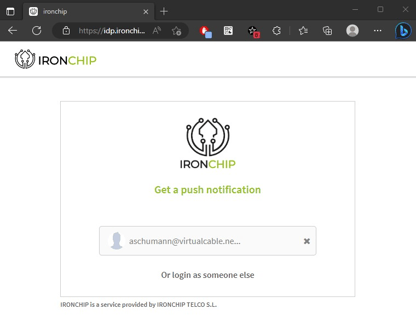

When selecting the SAML authenticator, we will be automatically redirected to the
provider's page. In this case, the system will ask for the user's email address to which a
PUSH will be sent:
NOTE: The validation mode will be the one configured in the provider itself. That is, if we
have user validation via MFA, it will be used.
Once the IRONCHIP login is done, a redirection will take place and we will return to the
UDS Enterprise services page:
NOTE: If the group to which the user belongs has services assigned to it, they will be
displayed and the user will be able to access them.
We can check which groups a user belongs to by editing it. To do this, access the
authenticator and edit the user:
We can verify that, in this example, the user andres belongs to the UDS Enterprise group
and, as he is registered as a group in the authenticator, he can access.
